Details: Actors

Overview: Types of actors

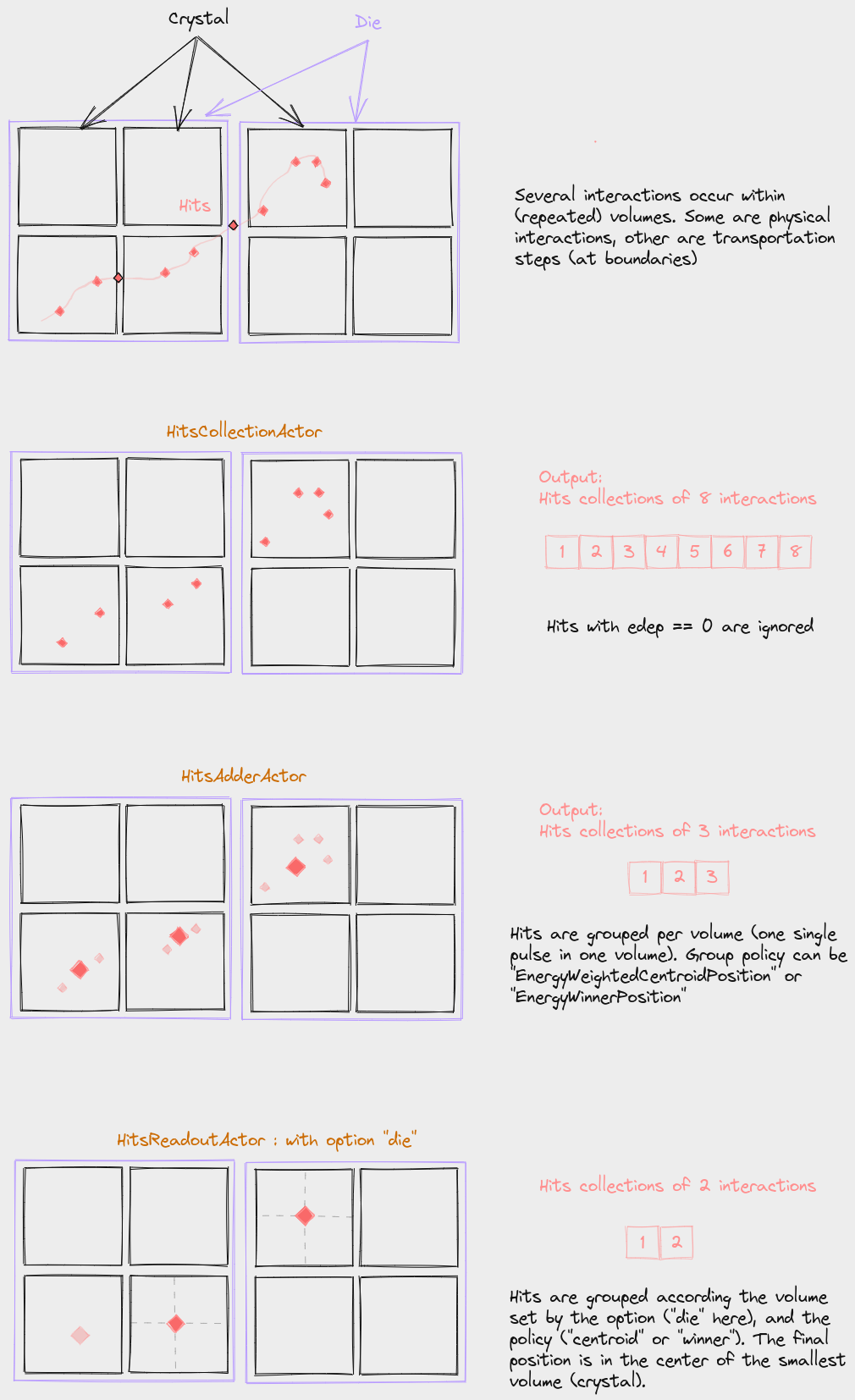

Hits-related actors (digitizers)

GATE contains a number of actors that work on a per-hit or per-event basis. A hit in Geant4 refers to a single interaction, i.e. with an associated position, potentially deposited energy, etc. Historically, these actors were developed to mimic the digitization chain in nuclear imaging scanners and are therefore called digitizers, but they are actually just actors.

Digitizers can store rich information about the particle involved in the hit, e.g. the type of particle, the kinetic properties, position, as well as information about the hit itself.

Most digitizers can be enchained so that the output of one digitizer provides the input to the next one. The DigitizerHitsCollectionActor is usually the first one in such a processing chain. It simply collects every hit that occurs in a certain volume and stores in a ROOT file.

The PhaseSpaceActor is actually a special case of the DigitizerHitsCollectionActor that stores only certain hits in a volume, rather than all, e.g. the first hit.

Most of the other digitizers process data per event, i.e. one entry in the data is related to one primary particle. The ‘’compression’’ from per-hit to per-event data is for example achieved by the DigitizerAdderActor.

Most digitizers create a ROOT file as output (except DigitizerProjectionActor, which outputs an image). The output can be written to disk with my_digitizer.root_output.write_to_disk = True.

If your simulation contains repeated volumes, you need to decide whether you allow a digitizer to be attached to them or not. You can do that via the parameter authorize_repeated_volumes: Set this to True to work with repeated volumes, such as in PET systems. However, for SPECT heads, you may want to avoid recording hits from both heads in the same file, in which case, set the flag to False.

SimulationStatisticsActor

Description

The SimulationStatisticsActor actor is a very basic tool that allows counting the number of runs, events, tracks, and steps that have been created during a simulation. Most simulations should include this actor as it gives valuable information. The stats object contains the counts dictionary that contains all results.

# ...
stats = sim.add_actor('SimulationStatisticsActor', 'Stats')
stats.track_types_flag = True
# ...

sim.run()
print(stats)
print(stats.counts)

In addition, if the flag track_types_flag is enabled, the actor will save a dictionary structure with all types of particles that have been created during the simulation, which is available as stats.counts.track_types. The start and end time of the whole simulation are available and speeds are estimated (primary per sec, track per sec, and step per sec).

Reference

class SimulationStatisticsActor(*args, **kwargs)

Store statistics about a simulation run.

This actor has the following output:

• stats

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• track_types_flag:

  • Default value: False

  • Description: Should the type of tracks be counted?

KillActor

Description

The KillActor enables the user to “kill”, i.e. to stop this particle tracking, during its first step in a defined volume where this actor is attached. The number of killed particle can be retrieved printing the actor object.

kill_actor = sim.add_actor("KillActor", "KillAct")
kill_actor.attached_to = kill_plane
print(kill_actor)

# Example: Kill only electrons with energy below 10 keV in the volume
F = gate.GateFilterBuilder(sim)
kill_actor.filter = (F.ParticleName == "e-") & (F.KineticEnergy < 10 * keV)

Refers to the test064 for more details.

Reference

class KillActor(*args, **kwargs)

Actor which kills a particle entering a volume.

This actor has the following output:

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

---

DoseActor

Description

The DoseActor scores the energy deposition (edep) or absorbed dose map in a given volume. The dose map is a 3D matrix parameterized with: size (number of voxels), spacing (voxel size), and translation (according to the coordinate system of the attached volume) and rotation. By default, the matrix is centered according to the volume center. Note that this virtual scoring grid is independent of a potential geometric grid (e.g. simulation using a voxelized CT image as geometry). The dose map may also have singleton dimensions (dose.size values with 1) reducing its effecctive dimension.

A sample code to score the energy deposition (default) is shown below. Let’s assume a geometry of type box with name “waterbox” is already defined and is [200, 200, 200] * mm big. The dose actor output would now cover the entire size of the “waterbox” and has the same center.

dose_act_obj = sim.add_actor("DoseActor", "dose_act_obj")
dose_act_obj.output_filename = "test008-edep.mhd"
dose_act_obj.attached_to = "waterbox"
dose_act_obj.size = [100, 100, 100]
mm = gate.g4_units.mm
dose_act_obj.spacing = [2 * mm, 2 * mm, 2 * mm]

Adding following lines

dose_act_obj.dose.active = True
dose_act_obj.dose_uncertainty.active = True
dose_act_obj.edep_uncertainty.active = True

to the dose actor object will trigger an additional image scoring the dose. The uncertainty tag will additionally provide an uncertainty image for each of the scoring quantities. Set user_output.edep.active False to disable the edep computation and only return the dose.

Setting and Evaluating the Statistical Uncertainty Goal

This section demonstrates how to monitor and enforce a statistical uncertainty goal during a Monte Carlo simulation, particularly in dose simulations using GATE10. It includes how to define the uncertainty criteria, how often to check it, and how to evaluate the final result based on the deposited energy distribution.

To ensure simulation efficiency, we may wish to stop early when a target uncertainty (e.g., 5%) is reached in the high-dose (high-edep) region.

# Target statistical uncertainty (e.g., 5%)
unc_goal = 0.05

# Define how "high-dose" voxels are selected: here, > 70% of max edep value
thresh_voxel_edep_for_unc_calc = 0.7

# Planned number of primary particles or events (e.g., 100 MBq)
n_planned = 100 * 1e6  # 100 million particles

These parameters are then passed to the dose actor:

dose.uncertainty_goal = unc_goal # 0.05
dose.uncertainty_first_check_after_n_events = 0.01 * n_planned # check statistical uncertainty every 1 MBq particles
dose.uncertainty_voxel_edep_threshold = thresh_voxel_edep_for_unc_calc # 0.7

Uncertainty is computed only in high-deposition voxels to focus on the clinically relevant region:

def calculate_mean_unc(edep_arr, unc_arr, edep_thresh_rel=0.7):
    # Average the uncertainty values ​​over the high energy deposition areas
    edep_max = np.amax(edep_arr)
    mask = edep_arr > edep_max * edep_thresh_rel
    unc_used = unc_arr[mask]
    unc_mean = np.mean(unc_used)

    return unc_mean

Note: This method uses a relative threshold based on the maximum deposited energy, which may be sensitive to outliers. Consider using a percentile-based threshold for robustness if needed.

At the end of the simulation, the actual mean uncertainty and the number of events used are reported:

# test that final mean uncertainty satisfies the goal uncertainty
edep_arr = np.asarray(dose.edep.image)
unc_array = np.asarray(dose.edep_uncertainty.image)
unc_mean = calculate_mean_unc(edep_arr, unc_array, edep_thresh_rel=thresh_voxel_edep_for_unc_calc)
n_effective = stats.counts.events

print(f"{unc_goal = }")
print(f"{unc_mean = }")
print(f"{n_planned = }")
print(f"{n_effective = }")
if n_effective < n_planned: print("Simulation ended early.")

This can help determine if the simulation converged early due to meeting the uncertainty goal.

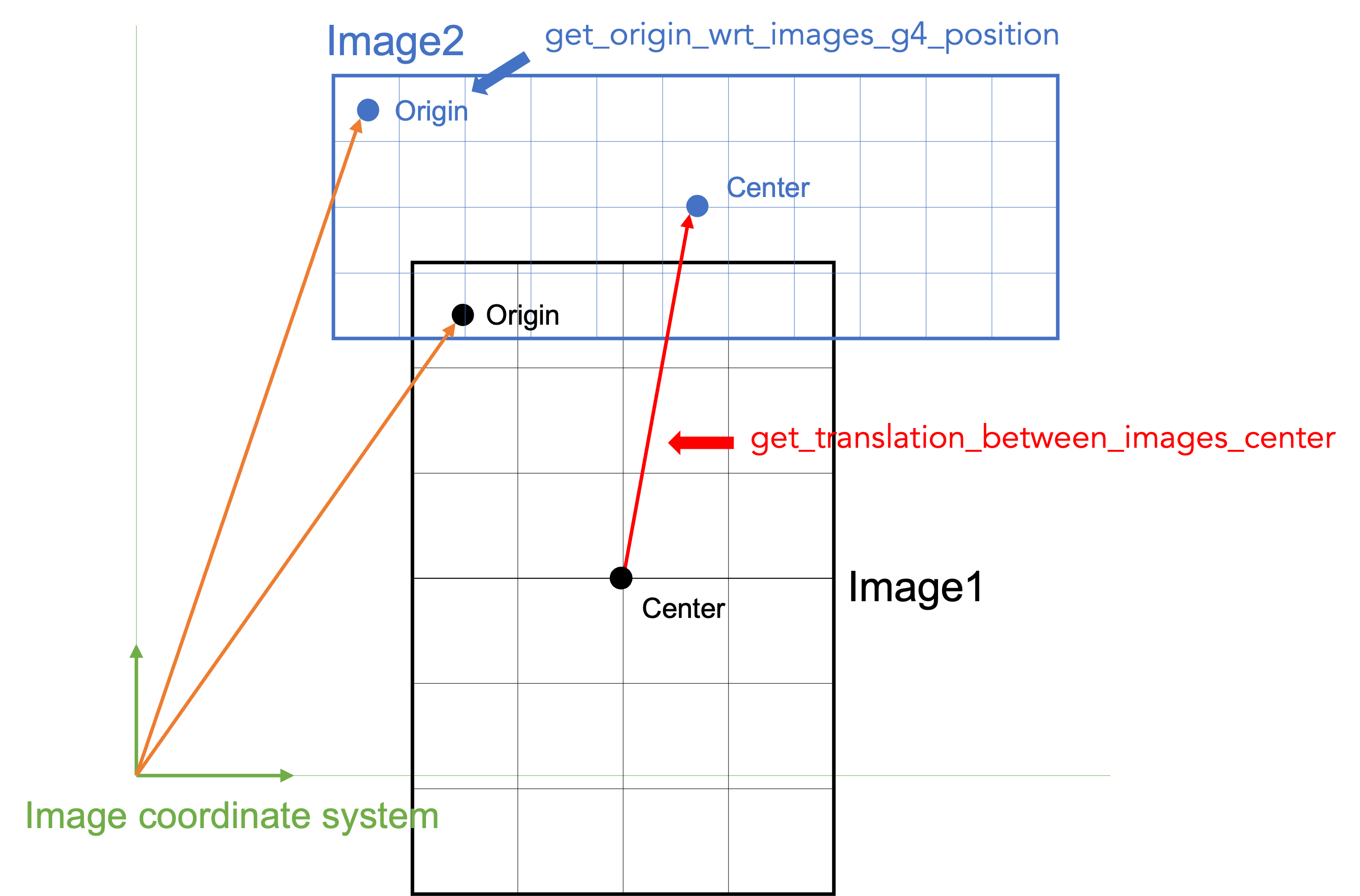

Like any image, the output dose map will have an origin, spacing and orientation. By default, it will consider the coordinate system of the volume it is attached to, so at the center of the image volume. The user can manually change the output origin using the option output_origin of the DoseActor. Alternatively, if the option img_coord_system is set to True, the final output origin will be automatically computed from the image the DoseActor is attached to. This option calls the function get_origin_wrt_images_g4_position to compute the origin.

Several tests depict the usage of DoseActor: test008, test009, test021, test035, etc. The following would translate and rotate the scored image:

from scipy.spatial.transform import Rotation
mm = gate.g4_units.mm
dose_act_obj.translation = [2 * mm, 3 * mm, -2 * mm]
dose_act_obj.rotation = Rotation.from_euler("y", 90, degrees=True).as_matrix()

In this example a uniform scoring object was created for simplicity. To test trans- and rotations, non-uniform sized and spaced voxelized image are highly encouraged.

The DoseActor has the following output:

• edep

• edep_uncertainty

• dose

• dose_uncertainty

• counts

• density

Note: to report dose and uncertainty in radiation therapy, please refer to TG-268 report : https://aapm.onlinelibrary.wiley.com/doi/10.1002/mp.12702

Reference

class DoseActor(*args, **kwargs)

Computes the deposited energy or absorbed dose in the volume to which it is attached.

It creates a virtual voxelized scoring image, whose shape and position can be defined by the user.

This actor has the following output:

• edep

• edep_squared

• edep_uncertainty

• dose

• dose_squared

• dose_uncertainty

• density

• counts

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• dose:

  • Deprecated: Use: my_actor.dose.active=True/False to request the actor to score dose, where ‘my_actor’ should be your actor object. By default, only the deposited energy is scored.

• dose_calc_on_the_fly:

  • Default value: False

  • Description: FIXME

• fast_SPR_calculation:

  • Default value: False

  • Description: If True, the stopping power ratio for the conversion of dose to dose to material is assumed constant with energy and it is calculated only once for each interacting particle and voxel’s material combinations. If False, on the fly calculation of the SPR is performed. The former option will speed-up the calculation, the latter has better accuracy.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• reference_energy_SPR:

  • Default value: 50

  • Description: Energy in Mev used for the calculation of SPR, when fast_SPR_calculation = True.

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• score_in:

  • Default value: material

  • Description: The score_in command allows to convert the Dose or Edep from the material, which is defined in the geometry, to any user defined material. Note, that this does not change the material definition in the geometry. The default value is ‘material’, which means that no conversion is performed and the LET to the local material is scored. You can use any material defined in the simulation or pre-defined by Geant4 such as ‘G4_WATER’, which may be one of the most use cases of this functionality.

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• square:

  • Deprecated: Use: my_actor.square.active=True/False to request uncertainty scoring of the respective quantity, where ‘my_actor’ should be your actor object. Note: activating user_output.edep_uncertainty or user_output.dose_uncertainty implies activating user_output.square.

• ste_of_mean:

  • Default value: False

  • Description: Calculate the standard error of the mean. Only working in MT mode and the number of threads are considered the sample. To have a meaningful uncertainty at least 8 threads are needed.

• ste_of_mean_unbiased:

  • Default value: False

  • Description: Similar to ste_of_mean, but compensates for a bias in ste_of_mean for small sample sizes (<8).

• to_water:

  • Deprecated: Use my_dose_actor.score_in=’G4_WATER’ instead.

• transition_energy_SPR:

  • Default value: 10

  • Description: When fast_SPR_calculation = True, the fast calculation will be performed only for particles with energy < transition_energy_SPR

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

• uncertainty:

  • Deprecated: Use: my_actor.dose_uncertainty.active=True/False andmy_actor.user_output.edep_uncertainty.active=True/False to request uncertainty scoring of the respective quantity, where ‘my_actor’ should be your actor object.

• uncertainty_first_check_after_n_events:

  • Default value: 10000.0

  • Description: Only applies if uncertainty_goal is set True: Number of events after which uncertainty is evaluated the first time. After the first evaluation, the value is updated with an estimation of the N events needed to achieve the uncertainty goal, Therefore it is recommended to select a sufficiently large number so the uncertainty of the uncertainty is not too large.

• uncertainty_goal:

  • Default value: None

  • Description: If set, it defines the statistical uncertainty goal. The simulation will stop once the statistical uncertainty is smaller or equal this value.

• uncertainty_overshoot_factor_N_events:

  • Default value: 1.05

  • Description: Only applies if uncertainty_goal is set True: Factor multiplying the estimated N events needed to achieve the uncertainty goal, to ensure convergence.

• uncertainty_voxel_edep_threshold:

  • Default value: 0.7

  • Description: Only applies if uncertainty_goal is set True: The calculation of the mean uncertainty of the edep image, only voxels that are above this relative threshold are considered. The threshold must range between [0, 1] and gives the fraction relative to max edep value in the image.

property DoseActor.edep

edep

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = item0

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property DoseActor.edep_uncertainty

edep_uncertainty

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = uncertainty

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property DoseActor.dose

dose

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = item0

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property DoseActor.dose_uncertainty

dose_uncertainty

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = uncertainty

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property DoseActor.counts

counts

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = True

  • suffix = None

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property DoseActor.density

density

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = True

  • suffix = None

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

LETActor

Description

The LET Actor scores the fluence- (also referred to as track-) or dose averaged LET within a volume using a voxelizing parametrization identical to the Dose Actor. Hence, see the Dose Actor documentation for spatial commands like image resolution, origin etc. - the same commands apply for the LET Actor.

Note

In most use cases of LET in literature, only a subset of particles is considered for the calculation of averaged LET, e.g. in proton radiotherapy, where often only protons are considered. Therefore, the LET actor often goes along with a particle filter. See test050 as an example.

Note

Refer to test050 for a current example.

Reference

class LETActor(*args, **kwargs)

This actor scores the Linear Energy Transfer (LET) on a voxel grid in the volume to which the actor is attached. Note that the LET Actor puts a virtual grid on the volume it is attached to. Any changes on the LET Actor will not influence the geometry/material or physics of the particle tranpsort simulation.

This actor has the following output:

• numerator

• denominator

• let

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• averaging_method:

  • Default value: dose_average

  • Allowed values: (‘dose_average’, ‘track_average’)

  • Description: The LET actor returns either dose or fluence (also called track) average. Select the type with this command.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• score_in:

  • Default value: G4_WATER

  • Description: The score_in command allows to convert the LET from the material, which is defined in the geometry, to any user defined material. Note that this does not change the material definition in the geometry. The default value is ‘material’, which means that no conversion is performed and the LET to the local material is scored. You can use any material defined in the simulation or pre-defined by Geant4 such as ‘G4_WATER’, which may be one of the most use cases of this functionality.

• separate_output:

  • Deprecated: Denominator and numerator images are automatically handled and stored.

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

REActor

Description

The REActor scores the dose-averaged relative effectiveness (RE) map within a given volume, according to Herrmann et al., 2011. Spatial options are identical to those of DoseActor.

Note

Refer to test087_beam_quality_actor_re for a current example.

The actor reads a lookup table of RE values as a function of particle and kinetic energy, by lookup_table_path. The kinetic energy can be in the unit of either MeV/u or MeV, while remaining consistent with energy_per_nucleon option.

Note

Particle species with atomic number from 1 to 10 are supported.

The actor has the following outputs:

• RE_mix

Reference

class REActor(*args, **kwargs)

This actor has the following output:

• RE_numerator

• RE_denominator

• RE_mix

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• energy_per_nucleon:

  • Default value: False

  • Description: The kinetic energy in the table is the energy per nucleon MeV/n, else False.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• lookup_table:

  • Default value: None

  • Description: z*_1d or alpha_z table. Read by the actor.

• lookup_table_path:

  • Default value:

  • Description: path of the z*_1d or alpha_z table.

• model:

  • Default value: RE

  • Allowed values: (‘mMKM’, ‘LEM1lda’, ‘RE’)

  • Description: which model is used to calculate beam quality.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• score_in:

  • Default value: material

  • Description: The score_in command allows to convert the scored quantity from the material, which is defined in the geometry, to any user defined material. Note, that this does not change the material definition in the geometry. The default value is ‘material’, which means that no conversion is performed and the quantity to the local material is scored. You can use any material defined in the simulation or pre-defined by Geant4 such as ‘G4_WATER’, which may be one of the most use cases of this functionality.

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

property REActor.RE_mix

RE_mix

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = quotient

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

RBEActor

Description

The RBEActor scores the relative biological effectiveness (RBE) map within a given volume. Spatial options are identical to those of DoseActor. The available values for the model option are: mMKM, LEM1lda.

• mMKM: The implementation of modified microdosimetric kinetic model (mMKM) was based on Inaniwa et al., 2010. The actor reads a lookup table of saturation-corrected dose-averaged specific energy (z*_1D) values by lookup_table_path.

• LEM1lda: The implementation of local effect model I with low dose approximation (LEM1lda) was based on Krämer and Scholz, 2006. The actor reads a lookup table of initial slope (alpha_z) values by lookup_table_path.

The format requirement of the lookup table is identical to that in REActor. By default, the actor uses the radiosensitivity parameters of aerobic HSG cells. In order to calculate RBE using the radiosentivity parameters of Chordoma, the user should specify by the cell_type option.

Available cell types	alpha_ref	beta_ref
HSG	0.764	0.0615
Chordoma	0.1	0.05

The actor has the following outputs:

• rbe (if write_RBE_dose_image is set to True, which is the default setting)

• rbe_dose (if write_RBE_dose_image is set to True, which is the default setting)

• alpha_mix

• beta_mix (if model is set to LEM1lda)

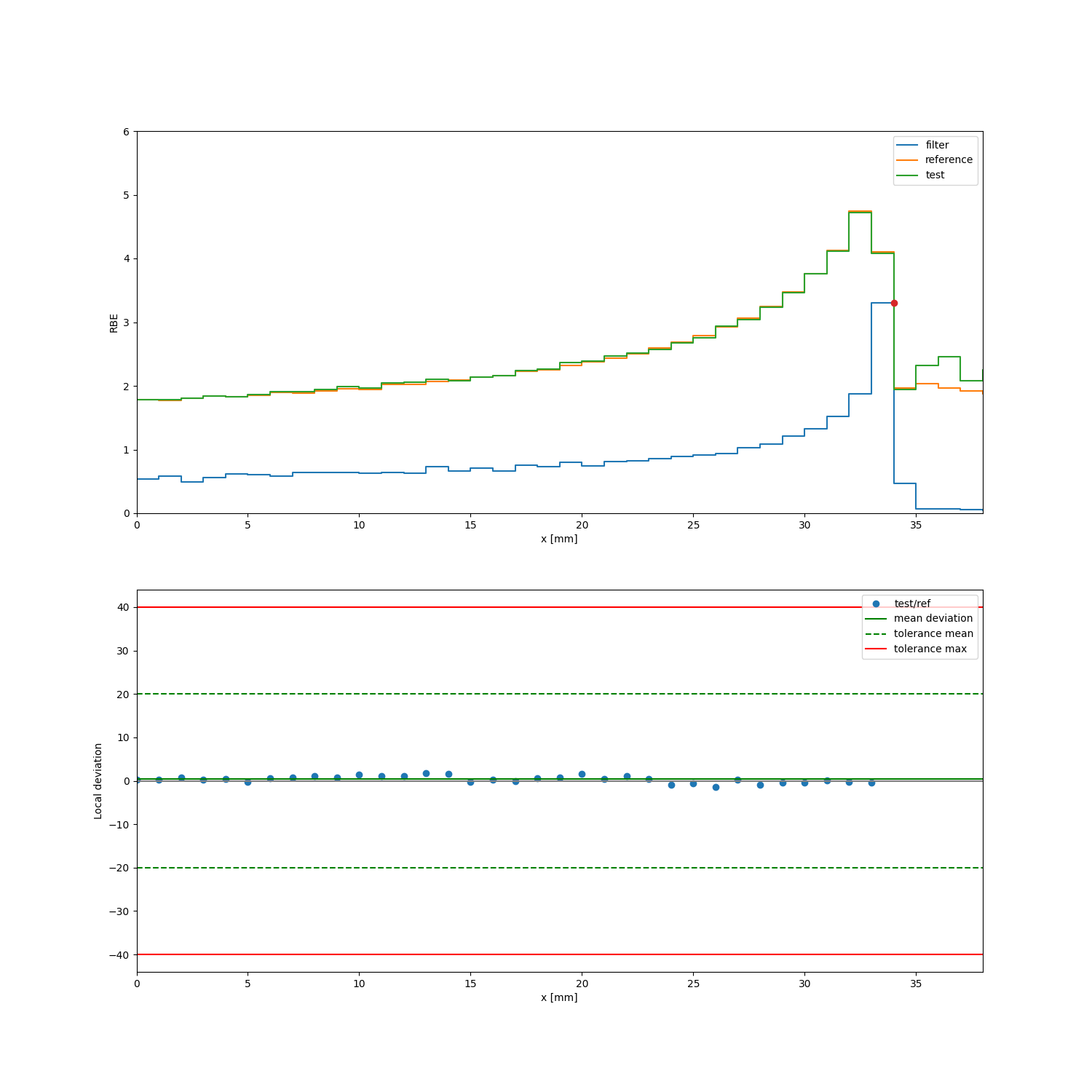

The user can refer to test087_beam_quality_actor_rbe_mMKM for an example. The test case simulates the central RBE profile (shown in the following figure) and alpha_mix profile of a quasi-monoenergetic carbon ion beam in water, using the mMKM model and z*_1D lookup table generated with SURVIVAL (Manganaro et al., 2018). The “reference” RBE profile was simulated using the same configurations, but better statistics (1e5 primaries). The “filter” edep profile is shown in arbituary unit to indicate the Bragg peak position, up to which the evaluation is conducted.

Note

This test case serves as a reference and does not prescribe specific choices or computations of lookup tables. A publication on the validation of RBEActor is planned.

Reference

class RBEActor(*args, **kwargs)

RBEActor:

• mMKM:

  • alpha mix (score separately numerator and denominator)

• LEM1lda:

  • alpha mix (score separately numerator and denominator)

  • beta mix (score separately numerator and denominator)

Note: all will also score edep as denominator image -> retrieve dose

This actor has the following output:

• alpha_numerator

• alpha_denominator

• alpha_mix

• beta_numerator

• beta_denominator

• beta_mix

• rbe

• rbe_dose

User input parameters and default values:

• D_cut:

  • Default value: 30.0

  • Description: LEM specific arbituary parameter, the physical dose threshold between linear quadratic and linear cell survival. Unit: Gy.

• F_clin:

  • Default value: 2.41

  • Description: mMKM specific arbituary parameter, the clinical sclaing factor.

• alpha_0:

  • Default value: 0.172

  • Description: mMKM specific fitted parameter, for the calculation of cellline alpha_z per radiation. Unit: Gy-1

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• beta_ref:

  • Default value: None

  • Description: Cellline specific parameter. Initialized according to cell_type.

• cell_type:

  • Default value: HSG

  • Allowed values: (‘HSG’, ‘Chordoma’)

  • Description: To add new cell types, update the self.cells_radiosensitivityvariable in the init of the actor

• energy_per_nucleon:

  • Default value: False

  • Description: The kinetic energy in the table is the energy per nucleon MeV/n, else False.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• lookup_table:

  • Default value: None

  • Description: z*_1d or alpha_z table. Read by the actor.

• lookup_table_path:

  • Default value:

  • Description: path of the z*_1d or alpha_z table.

• model:

  • Default value: RE

  • Allowed values: (‘mMKM’, ‘LEM1lda’, ‘RE’)

  • Description: which model is used to calculate beam quality.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• r_nucleus:

  • Default value: 5

  • Description: nucleus’s radius, in um. Used when rbe_model is LEM

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• score_in:

  • Default value: material

  • Description: The score_in command allows to convert the scored quantity from the material, which is defined in the geometry, to any user defined material. Note, that this does not change the material definition in the geometry. The default value is ‘material’, which means that no conversion is performed and the quantity to the local material is scored. You can use any material defined in the simulation or pre-defined by Geant4 such as ‘G4_WATER’, which may be one of the most use cases of this functionality.

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

• write_RBE_dose_image:

  • Default value: True

  • Description: Do you want to calcu;ate and write to disk RBE and RBE dose images?

property RBEActor.rbe

rbe

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = True

  • suffix = None

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property RBEActor.rbe_dose

rbe_dose

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = True

  • suffix = None

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property RBEActor.alpha_mix

alpha_mix

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = quotient

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

property RBEActor.beta_mix

beta_mix

• Parameters and defaults:

  • output_filename = auto

  • write_to_disk = True

  • active = False

  • suffix = quotient

• Methods:

  • get_output_path(): Get the path (absolute) where GATE stores this output. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

  • get_data(): Get the data stored in this output, e.g. an ITK image. Use the argument ‘which’ to specify whether you refer to the cumulative output of the entire simulation (which=’merged’), or to a specific run, e.g. which=2 for run index 2 (run indices start at 0).

• Description of the parameters:

  • active: Should the actor consider and score this output?

  • output_filename: Output filename used for this output. An automatic suffix is appended for per-run data. You can also specify a relative path, i.e. relative to the simulation’s output directory, e.g. output_file = Path(‘dose_output’) / ‘patient_dose.mhd’.

  • write_to_disk: Should this output be stored on disk?

  • keep_data_per_run: Should data be kept in memory for individual runs? If False, only the cumulative data is kept. Note: Not every kind of user output supports this, e.g. ROOT output cannot per stored on a per-run basis.

  • image: Shortcut to the ITK image containing the cumulative result of this actor, e.g. the dose scored over the entire simulation. If you need to get the image corresponding to a certain run, use get_data(which=RUN_INDEX). For example: get_data(which=3) to get the image from run 3 (run indices start at 0).

FluenceActor

Description

This actor scores the particle fluence on a voxel grid, essentially by counting the number of particles passing through each voxel. The FluenceActor will be extended in the future with features to handle scattered radiation, e.g. in cone beam CT imaging.

Reference

class FluenceActor(*args, **kwargs)

FluenceActor: compute a 3D map of fluence FIXME: add scatter order and uncertainty

This actor has the following output:

• fluence

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• scatter:

  • Default value: False

  • Description: FIXME

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

• uncertainty:

  • Default value: False

  • Description: FIXME

TLEDoseActor

Description

This is a variant of the normal DoseActor which scores dose due to low energy gammas in another way, namely via the track length in the given voxel. Most options as well as the output are identical to the DoseActor. It is based on the work of Baldacci et al., 2014. It is designed to model a photon population instead of treating each photon as a single particle. This approach enables efficient and accurate dose calculation by enabling a multiple energy deposition by a single photon.

How It Works During a step, where a typical photon would interact and deposit its energy stochastically, a TLE photon deposits dose based on the material’s mass energy-absorption coefficient (μ_en) and the step length. This method implies a local dose deposition at the voxel scale, even though secondary electrons are emitted. This actor indeed do not interfer with the GEANT4 tracking.

Since the database does not take into account the radiative part during the TLE energy deposition calculation, this method is applied to all photons, whether originating from the primary source or from secondary radiative processes. This approach offers a computationally efficient alternative to traditional dose calculation methods.

Energy Threshold Option A novel feature of the TLE actor is the ability to activate or deactivate the TLE mechanism based on a user-defined energy threshold. This provides flexibility in simulations, allowing users to tailor the behavior of the TLE actor according to the energy ranges of interest.

Here is the a classical way to use the TLEDoseActor :

tle_dose_actor = sim.add_actor("TLEDoseActor", "tle_dose_actor")
tle_dose_actor.output_filename = "my_output.mhd"
tle_dose_actor.attached_to = irradiated_volume.name
tle_dose_actor.dose.active = True
tle_dose_actor.dose_uncertainty.active = True
tle_dose_actor.size = [200, 200, 200]
tle_dose_actor.spacing = [x / y for x, y in zip(irradiated_volume.size, tle_dose_actor.size)]

Refer to test081 <OpenGATE/opengate>`_ for more details.

Reference

class TLEDoseActor(*args, **kwargs)

TLE = Track Length Estimator

This actor has the following output:

• edep

• edep_squared

• edep_uncertainty

• dose

• dose_squared

• dose_uncertainty

• density

• counts

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• database:

  • Default value: EPDL

  • Allowed values: (‘EPDL’, ‘NIST’)

  • Description: which database to use

• dose:

  • Deprecated: Use: my_actor.dose.active=True/False to request the actor to score dose, where ‘my_actor’ should be your actor object. By default, only the deposited energy is scored.

• dose_calc_on_the_fly:

  • Default value: False

  • Description: FIXME

• energy_min:

  • Default value: 0.0

  • Description: Kill the gamma if below this energy

• fast_SPR_calculation:

  • Default value: False

  • Description: If True, the stopping power ratio for the conversion of dose to dose to material is assumed constant with energy and it is calculated only once for each interacting particle and voxel’s material combinations. If False, on the fly calculation of the SPR is performed. The former option will speed-up the calculation, the latter has better accuracy.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• hit_type:

  • Default value: random

  • Allowed values: (‘random’, ‘pre’, ‘post’, ‘middle’)

  • Description: For advanced users: define the position of interaction to which the deposited quantity is associated to, i.e. at the Geant4 PreStepPoint, PostStepPoint, or somewhere in between (middle or (uniform) random). In doubt use/start with random.

• img_coord_system:

  • Deprecated: The user input parameter ‘img_coord_system’ is deprecated. Use my_actor.output_coordinate_system=’attached_to_image’ instead, where my_actor should be replaced with your actor object.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• output:

  • Deprecated: The output filename is now set via output_filename relative to the output directory of the simulation, which can be set via sim.output_dir. If no output_filename is provided, it will be generated automatically. To specify whether the actor output should be written to disk, use write_to_disk=True/False.

• output_coordinate_system:

  • Default value: local

  • Allowed values: (‘local’, ‘global’, ‘attached_to_image’, None)

  • Description: This command sets the reference coordinate system, which can be the local volume (attached_to commmand), global or attached to image.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• reference_energy_SPR:

  • Default value: 50

  • Description: Energy in Mev used for the calculation of SPR, when fast_SPR_calculation = True.

• repeated_volume_index:

  • Default value: 0

  • Description: Index of the repeated volume (G4PhysicalVolume) to which this actor is attached. For non-repeated volumes, this value is always 0.

• rotation:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: Rotation matrix to (optionally) rotate the image. Default is the identiy matrix.

• score_in:

  • Default value: material

  • Description: The score_in command allows to convert the Dose or Edep from the material, which is defined in the geometry, to any user defined material. Note, that this does not change the material definition in the geometry. The default value is ‘material’, which means that no conversion is performed and the LET to the local material is scored. You can use any material defined in the simulation or pre-defined by Geant4 such as ‘G4_WATER’, which may be one of the most use cases of this functionality.

• size:

  • Default value: [10, 10, 10]

  • Description: Size of the dose grid in number of voxels [N_x, N_y, N_z]. Expects a list of integer values of size 3.

• spacing:

  • Default value: [1.0, 1.0, 1.0]

  • Description: Voxel spacing vector along the [x, y, z] coordinates with units. The user sets the units by multiplication with g4_units.XX. The default unit is g4_unit.mm amd the default spacing is [1, 1, 1] [g4_units.mm]

• square:

  • Deprecated: Use: my_actor.square.active=True/False to request uncertainty scoring of the respective quantity, where ‘my_actor’ should be your actor object. Note: activating user_output.edep_uncertainty or user_output.dose_uncertainty implies activating user_output.square.

• ste_of_mean:

  • Default value: False

  • Description: Calculate the standard error of the mean. Only working in MT mode and the number of threads are considered the sample. To have a meaningful uncertainty at least 8 threads are needed.

• ste_of_mean_unbiased:

  • Default value: False

  • Description: Similar to ste_of_mean, but compensates for a bias in ste_of_mean for small sample sizes (<8).

• tle_threshold:

  • Default value: inf

  • Description: Define a criterium to enable TLE or not. It can be in terms of gamma energy or in secondary particle range depending on the provided tle_threshold_type

• tle_threshold_type:

  • Default value: None

  • Description: Define the type of range lim provided to hTLE. It could be applied without threshold (None), by energy (energy), or by the range of an electron with the full gamma energy (max range) or the average transfered energy (average range).

• to_water:

  • Deprecated: Use my_dose_actor.score_in=’G4_WATER’ instead.

• transition_energy_SPR:

  • Default value: 10

  • Description: When fast_SPR_calculation = True, the fast calculation will be performed only for particles with energy < transition_energy_SPR

• translation:

  • Default value: [0.0, 0.0, 0.0]

  • Description: Translation vector to (optionally) translate the image in along [x, y, z] from the center of the attached volume. The default unit is g4_units.mm and default value is the unity operation [0, 0, 0] * g4_units.mm.

• uncertainty:

  • Deprecated: Use: my_actor.dose_uncertainty.active=True/False andmy_actor.user_output.edep_uncertainty.active=True/False to request uncertainty scoring of the respective quantity, where ‘my_actor’ should be your actor object.

• uncertainty_first_check_after_n_events:

  • Default value: 10000.0

  • Description: Only applies if uncertainty_goal is set True: Number of events after which uncertainty is evaluated the first time. After the first evaluation, the value is updated with an estimation of the N events needed to achieve the uncertainty goal, Therefore it is recommended to select a sufficiently large number so the uncertainty of the uncertainty is not too large.

• uncertainty_goal:

  • Default value: None

  • Description: If set, it defines the statistical uncertainty goal. The simulation will stop once the statistical uncertainty is smaller or equal this value.

• uncertainty_overshoot_factor_N_events:

  • Default value: 1.05

  • Description: Only applies if uncertainty_goal is set True: Factor multiplying the estimated N events needed to achieve the uncertainty goal, to ensure convergence.

• uncertainty_voxel_edep_threshold:

  • Default value: 0.7

  • Description: Only applies if uncertainty_goal is set True: The calculation of the mean uncertainty of the edep image, only voxels that are above this relative threshold are considered. The threshold must range between [0, 1] and gives the fraction relative to max edep value in the image.

VoxelDepositActor

This is a common base class used by the actors that scored quantities deposited on voxel grid like the DoseActor, LETActor, FluenceActor, TLEDoseActor.

Important

You cannot use this actor directly in your simulation.

PhaseSpaceActor

Description

A PhaseSpaceActor stores any set of particles reaching a given volume during the simulation. The list of attributes that are kept for each stored particle can be specified by the user.

phsp = sim.add_actor("PhaseSpaceActor", "PhaseSpace")
phsp.attached_to = plane.name
phsp.attributes = [
    "KineticEnergy",
    "Weight",
    "PostPosition",
    "PrePosition",
    "ParticleName",
    "PreDirection",
    "PostDirection",
    "TimeFromBeginOfEvent",
    "GlobalTime",
    "LocalTime",
    "EventPosition",
]
phsp.output_filename = "test019_hits.root"
# Create a filter for gammas only
F = gate.GateFilterBuilder(sim)
phsp.filter = F.ParticleName == "gamma"

In this example, the PhaseSpaceActor will store all particles reaching the given plane. For each particle, some information will be stored, as shown in the attributes array: energy, position, name, time, etc. The list of available attribute names can be found in the file: GateDigiAttributeList.cpp.

The output is a ROOT file that contains a tree. It can be analyzed, for example, with uproot.

By default, the PhaseSpaceActor stores information about particles entering the volume. This behavior can be modified by the following options:

phsp.steps_to_store = "entering"  # this is the default
phsp.steps_to_store = "entering exiting first"  # other options (combined)

The option “first” stores the particle information when it enters the volume to which the actor is attached for the first time. The variables to be used are the PrePosition, PreDirection, etc.

The option “entering” stores the particle information whenever it is at the boundary between the surrounding environment (world, another volume) and the volume to which the actor is attached. The variables to be used are the PrePosition, PreDirection, etc. For example: if a particle enters the volume only once, its information is stored only once; the option entering is equal to the option first. If a particle passes through a volume, performs n scattering outside of it, and re-enters the volume, its entry information will be stored n times. If a particle interacts with the volume interfaces without exiting the volume (e.g., the reflection of optical photons), the actor will store all instances when the particle is at the boundary (all reflections are stored).

The option “exiting” stores the particle information whenever, starting from within the volume, it is at the boundary between the volume to which the actor is attached and the surrounding environment (world, another volume). The variables to be used are the PostPosition, PostDirection, etc.

Reference

class PhaseSpaceActor(*args, **kwargs)

Similar to HitsCollectionActor : store a list of hits. The hits can be stored when entering, exiting, first time seen or always (all hits stored).

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: FIXME

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• debug:

  • Default value: False

  • Description: print debug info

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• steps_to_store:

  • Default value: entering

  • Description: Define when to store the hits, can be ‘entering’, ‘exiting’, ‘first’ or ‘all’. Or several values separated by a space.

• store_absorbed_event:

  • Default value: False

  • Description: FIXME

DigitizerHitsCollectionActor

The DigitizerHitsCollectionActor collects hits occurring in a given volume (or its daughter volumes). Every time a step occurs in the volume, a list of attributes is recorded. The list of attributes is defined by the user:

hc = sim.add_actor('DigitizerHitsCollectionActor', 'Hits')
hc.attached_to = ['crystal1', 'crystal2']
hc.output_filename = 'test_hits.root'
hc.attributes = ['TotalEnergyDeposit', 'KineticEnergy', 'PostPosition',
                 'CreatorProcess', 'GlobalTime', 'VolumeName', 'RunID', 'ThreadID', 'TrackID']

In this example, the actor is attached to (attached_to option) several volumes (crystal1 and crystal2 ) but most of the time, one single volume is sufficient. This volume is important: every time an interaction (a step) is occurring in this volume, a hit will be created. The list of attributes is defined with the given array of attribute names. The names of the attributes are as close as possible to the Geant4 terminology. They can be of a few types: 3 (ThreeVector), D (double), S (string), I (int), U (unique volume ID, see DigitizerAdderActor section). The list of available attributes is defined in the file GateDigiAttributeList.cpp and can be printed with:

import opengate_core as gate_core
am = gate_core.GateDigiAttributeManager.GetInstance()
print(am.GetAvailableDigiAttributeNames())

Warning

KineticEnergy, Position and Direction are available for PreStep and for PostStep, and there is a “default” version corresponding to the legacy Gate (9.X).

Pre version	Post version	default version
PreKineticEnergy	PostKineticEnergy	KineticEnergy (Pre)
PrePosition	PostPosition	Position (Post)
PreDirection	PostDirection	Direction (Post)

Attribute correspondence with Gate 9.X for Hits and Singles:

Gate 9.X	Gate 10
edep or energy	TotalEnergyDeposit
posX/Y/Z or globalPosX/Y/Z	PostPosition_X/Y/Z or Position_X/Y/Z
time	GlobalTime
PDGEncoding	PDGCode
parentID	ParentID
momDirX/Y/Z	PostDirection_X/Y/Z
localPosX/Y/Z	PostPositionLocal_X/Y/Z
runID	RunID
stepLength	StepLength
processName	TrackCreatorProcess
trackID	TrackID
trackLength	TrackLength

At the end of the simulation, the list of hits can be written as a root file and/or used by subsequent digitizer modules (see next sections). The Root output is optional, if the output name is None nothing will be written. Note that, like in Gate, every hit with zero deposited energy is ignored. If you need them, you should probably use a PhaseSpaceActor. Several tests using DigitizerHitsCollectionActor are proposed: test025, test028, test035, etc.

The actors used to convert some hits to one digi are DigitizerHitsAdderActor and DigitizerReadoutActor (see next sections).

Reference

class DigitizerHitsCollectionActor(*args, **kwargs)

Build a list of hits in a given volume. - the list of attributes to be stored is given in the ‘attributes’ options - output as root

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• debug:

  • Default value: False

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• keep_zero_edep:

  • Default value: False

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

ProcessDefinedStepInVolumeAttribute

Description

This is a helper class used to define a custom attribute for hits-related actors (such as PhaseSpaceActor or DigitizerHitsCollectionActor).

It creates a new integer attribute that counts the number of times a particle has undergone a specific physics process (e.g. Compton, Rayleigh) within a specific volume.

• Value: The attribute contains the cumulative number of interactions of the defined type that the track has experienced in the volume up to the current step.

This is useful for analyzing particle history, for example, to determine how many times a detected photon has scattered in a collimator or patient.

Usage

To use it, you must instantiate the class with the simulation object, the process name (as defined in Geant4), and the volume name. The instance provides a .name property that must be added to the actor’s attribute list.

from opengate.actors.digitizers import ProcessDefinedStepInVolumeAttribute

# 1. Define the custom attributes
# Count "compt" (Compton scattering) interactions in volume "Waterbox1"
att_compt = ProcessDefinedStepInVolumeAttribute(sim, "compt", "Waterbox1")

# Count "Rayl" (Rayleigh scattering) interactions in volume "world"
att_rayl = ProcessDefinedStepInVolumeAttribute(sim, "Rayl", "world")

# 2. Create the actor (e.g. PhaseSpace)
phsp = sim.add_actor("PhaseSpaceActor", "PhaseSpace")
phsp.attached_to = "Detector"

# 3. Add the custom attributes to the list
phsp.attributes = [
    "KineticEnergy",
    "PrePosition",
    "EventID",
    att_compt.name,  # Add the custom counter here
    att_rayl.name
]

Filtering

Once defined, this custom attribute behaves like any other standard attribute (e.g. KineticEnergy). This means you can use it in a filter to select specific particles.

# Create a filter using the custom attribute name
# Example: Keep only particles that have undergone at least one Compton scatter in the waterbox
F = gate.GateFilterBuilder(sim)
phsp.filter = F(att_compt.name) > 0

Note

• Process Name: Must match the internal Geant4 process name (e.g., compt, phot, Rayl, eBrem).

• Volume Name: Must be the name of a volume existing in the simulation.

Reference

class ProcessDefinedStepInVolumeAttribute(sim, process_name, volume_name)

DigitizerAdderActor

Description

This actor groups the hits per different volumes according to the option group_volume (by default, this is the deeper volume that contains the hit). All hits occurring in the same event in the same volume are gathered into one single digi according to one of two available policies:

• EnergyWeightedCentroidPosition: - The final energy (TotalEnergyDeposit) is the sum of all deposited energy. - The position (PostPosition) is the energy-weighted centroid position. - The time (GlobalTime) is the time of the earliest hit.

• EnergyWinnerPosition: - The final energy (TotalEnergyDeposit) is the energy of the hit with the largest deposited energy. - The position (PostPosition) is the position of the hit with the largest deposited energy. - The time (GlobalTime) is the time of the earliest hit.

sc = sim.add_actor("DigitizerAdderActor", "Singles")
sc.output_filename = 'test_hits.root'
sc.input_digi_collection = "Hits"
sc.policy = "EnergyWeightedCentroidPosition"
# sc.policy = "EnergyWinnerPosition"
sc.group_volume = crystal.name

Note

This actor is only triggered at the end of an event, so the attached_to volume has no effect. Examples are available in test 037 .

Reference

class DigitizerAdderActor(*args, **kwargs)

Equivalent to Gate “adder”: gather all hits of an event in the same volume.

Input: a HitsCollection, need aat least TotalEnergyDeposit and PostPosition attributes Output: a Single collections

Policies: - EnergyWinnerPosition: consider position and energy of the hit with the max energy for all other attributes (Time, etc.): the value of the winner is used. - EnergyWeightedCentroidPosition: computed the energy-weighted centroid position for all other attributes (Time, etc.): the value the last seen hit is used.

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• group_volume:

  • Default value: None

  • Description: FIXME

• input_digi_collection:

  • Default value: Hits

  • Description: Digi collection to be used as input.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• number_of_hits:

  • Default value: False

  • Description: FIXME

• output:

  • Deprecated: Use output_filename instead.

• policy:

  • Default value: EnergyWinnerPosition

  • Allowed values: (‘EnergyWeightedCentroidPosition’, ‘EnergyWinnerPosition’)

  • Description: Digi collection to be used as input.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

• time_difference:

  • Default value: False

  • Description: FIXME

DigitizerReadoutActor

Description

This actor is similar to the DigitizerAdderActor, with one additional option: the resulting positions of the digi are set at the center of the defined volumes (discretized). The option discretize_volume indicates the volume name where the discrete position will be taken.

sc = sim.add_actor("HitsReadoutActor", "Singles")
sc.input_digi_collection = "Hits"
sc.group_volume = stack.name
sc.discretize_volume = crystal.name
sc.policy = "EnergyWeightedCentroidPosition"

Examples are available in test 037.

Reference

class DigitizerReadoutActor(*args, **kwargs)

This actor is a DigitizerAdderActor + a discretization step: the final position is the center of the volume

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• discretize_volume:

  • Default value: None

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• group_volume:

  • Default value: None

  • Description: FIXME

• input_digi_collection:

  • Default value: Hits

  • Description: Digi collection to be used as input.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• number_of_hits:

  • Default value: False

  • Description: FIXME

• output:

  • Deprecated: Use output_filename instead.

• policy:

  • Default value: EnergyWinnerPosition

  • Allowed values: (‘EnergyWeightedCentroidPosition’, ‘EnergyWinnerPosition’)

  • Description: Digi collection to be used as input.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

• time_difference:

  • Default value: False

  • Description: FIXME

DigitizerBlurringActor

Description

This module applies blurring to an attribute, such as time or energy. The method can be Gaussian, InverseSquare, or Linear:

For Gaussian blurring, specify the sigma or FWHM with blur_sigma or blur_fwhm.

For InverseSquare blurring, specify the reference energy value with blur_reference_value and the FWHM (at the reference energy) with blur_resolution (equation TBD).

For Linear blurring, specify blur_reference_value, blur_slope, and blur_reference_value (equation TBD).

bc = sim.add_actor("DigitizerBlurringActor", "Singles_with_blur")
bc.output_filename = "output.root"
bc.input_digi_collection = "Singles_readout"
bc.blur_attribute = "GlobalTime"
bc.blur_method = "Gaussian"
bc.blur_fwhm = 100 * ns

Reference

class DigitizerBlurringActor(*args, **kwargs)

Digitizer module for blurring an attribute (single value only, not a vector). Usually for energy or time.

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• blur_attribute:

  • Default value: None

  • Description: FIXME

• blur_fwhm:

  • Default value: None

  • Description: FIXME

• blur_method:

  • Default value: Gaussian

  • Allowed values: (‘Gaussian’, ‘InverseSquare’, ‘Linear’)

  • Description: FIXME

• blur_reference_value:

  • Default value: 0

  • Description: FIXME

• blur_resolution:

  • Default value: 0

  • Description: FIXME

• blur_sigma:

  • Default value: None

  • Description: FIXME

• blur_slope:

  • Default value: 0

  • Description: FIXME

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• input_digi_collection:

  • Default value: Hits

  • Description: Digi collection to be used as input.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

DigitizerSpatialBlurringActor

Description

The blurring operation may cause points to fall outside the volume. If you want to forbud this, use the keep_in_solid_limits option. This will push the hits back to the closest edge of the crystal. Alternatively the use_truncated_Gaussian option can be used with keep_in_solid_limits to recreate a more realistic scenario. This option changes the common Gaussian distribution to a new truncated Gaussian that preserves the standard deviation of the distribution within the crystal. This variation is paramount when using big crystals with spatial resolution, since it is the only way to preserve the original standard deviation of the reconstructed distribution. This is useful for monolithic crystals, but should not be used for pixelated crystals.

bc = sim.add_actor("DigitizerSpatialBlurringActor", f"Singles_{crystal.name}_SpatialBlurring")
bc.attached_to = hc.attached_to
bc.output_filename = hc.output_filename
bc.input_digi_collection = sc.name
bc.keep_in_solid_limits = True
bc.use_truncated_Gaussian = True
bc.blur_attribute = "PostPosition"
bc.blur_fwhm = [5*mm, 5*mm, 5*mm]

Reference

class DigitizerSpatialBlurringActor(*args, **kwargs)

Digitizer module for blurring a (global) spatial position.

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• blur_attribute:

  • Default value: None

  • Description: Which attribute to blur, e.g. PostPosition.

• blur_fwhm:

  • Default value: None

  • Description: FWHM for the blurring.

• blur_sigma:

  • Default value: None

  • Description: std. dev. for the blurring.

• clear_every:

  • Default value: 100000

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• input_digi_collection:

  • Default value: Hits

  • Description: FIXME

• keep_in_solid_limits:

  • Default value: True

  • Description: If the blurring move the position outside the solid limits, keep the point inside, on the boundary

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

• use_truncated_Gaussian:

  • Default value: True

  • Description: Apply a truncated Gaussian distribution to blur the position when close to the solid limits.

DigitizerEnergyWindowsActor

Description

The DigitizerEnergyWindowsActor is used in both PET and SPECT simulations to define energy windows that filter particles by energy range. This helps to reduce noise and select relevant events.

For PET, the window is centered around the 511 keV annihilation photon:

# EnergyWindows for PET
ew = sim.add_actor("DigitizerEnergyWindowsActor", "EnergyWindows")
ew.attached_to = hc.attached_to
ew.input_digi_collection = "Singles"
ew.channels = [{"name": ew.name, "min": 425 * keV, "max": 650 * keV}]  # 511 keV window
ew.output_filename = root_name

For SPECT, the windows can be more complex, with multiple channels:

# EnergyWindows for SPECT
ew = sim.add_actor("DigitizerEnergyWindowsActor", "EnergyWindows")
ew.attached_to = hc.attached_to
ew.input_digi_collection = "Singles"
ew.channels = [
    {"name": "scatter", "min": 114 * keV, "max": 126 * keV},
    {"name": "peak140", "min": 126 * keV, "max": 154.55 * keV},  # Tc-99m
]
ew.output_filename = hc.output_filename

For PET, refer to test037; for SPECT, refer to test028.

Reference

class DigitizerEnergyWindowsActor(*args, **kwargs)

Consider a list of hits and arrange them according to energy intervals. Input: one DigiCollection Output: as many DigiCollections as the number of energy windows

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• channels:

  • Default value: []

  • Description: FIXME

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• input_digi_collection:

  • Default value: Hits

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

DigitizerProjectionActor

Description

The DigitizerProjectionActor generates 2D projections from digitized particle hits in SPECT or PET simulations. It takes input collections and creates a projection image based on predefined grid spacing and size.

proj = sim.add_actor("DigitizerProjectionActor", "Projection")
proj.attached_to = hc.attached_to  # Attach to crystal volume
proj.input_digi_collections = ["scatter", "peak140", "Singles"]  # Use multiple energy channels
proj.spacing = [4.41806 * mm, 4.41806 * mm]  # Set pixel spacing in mm
proj.size = [128, 128]  # Image size in pixels (128x128)
proj.origin_as_image_center = False  # Origin is not at image center
proj.output_filename = 'projection.mhd'

Refer to test028 for SPECT examples.

Reference

class DigitizerProjectionActor(*args, **kwargs)

This actor takes as input HitsCollections and performed binning in 2D images. If there are several HitsCollection as input, the slices will correspond to each HC. If there are several runs, images will also be slice-stacked.

This actor has the following output:

• counts

• squared_counts

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• detector_orientation_matrix:

  • Default value: [[1. 0. 0.], [0. 1. 0.], [0. 0. 1.]]

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• input_digi_collections:

  • Default value: [‘Hits’]

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• origin_as_image_center:

  • Default value: True

  • Description: FIXME

• physical_volume_index:

  • Default value: -1

  • Description: When attached to a repeated volume, this option indicate which copy is used

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• size:

  • Default value: [128, 128]

  • Description: size of the 2D projection in pixels

• spacing:

  • Default value: [4.0, 4.0]

  • Description: FIXME

DigitizerEfficiencyActor

Description

This module simulates detection with non-100% efficiency, which can be set as a float between 0 and 1 (where 1 means all digis are stored). For each digi, a random number determines if the digi is kept.

ea = sim.add_actor("DigitizerEfficiencyActor", "Efficiency")
ea.input_digi_collection = "Hits"
ea.efficiency = 0.3

Refer to test057 for more details.

Reference

class DigitizerEfficiencyActor(*args, **kwargs)

Digitizer module for simulating efficiency.

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: Attributes to be considered.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• efficiency:

  • Default value: 1.0

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• input_digi_collection:

  • Default value: Hits

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: FIXME

DigitizerPileupActor

Description

Pile‑up occurs when multiple detector interactions happen within a time interval shorter than the resolving/shaping time. As a result, their pulses overlap and cannot be distinguished as separate events. The DigitizerPileupActor simulates this by combining singles in the same volume (set by group_volume) if they occur in a time interval set by time_window.

The actor applies the following rules to combine singles:

• The first single occurring after a time period of at least time_window without singles opens a time window of duration time_window.

• Any additional single occurring in that time window is merged with the other singles in that window.

• Depending on the value of time_window_policy, the time window may be extended if new singles arrive before the end of the current time window: * NonParalyzable (default): the time window remains fixed in duration, starting from the first single. * Paralyzable: the time window is extended to end time_window after the most recent single. * EnergyWinnerParalyzable: if the most recent single’s deposited energy is higher than that of all preceding singles in the same time window, the time window is extended to end time_window after the most recent single.

• The resulting combined single gets an attribute value TotalEnergyDeposit that is the sum of the deposited energy of all singles in the window.

• The resulting combined single gets an attribute value PostPosition that depends on the value of position_attribute_policy: * EnergyWeightedCentroid (default): energy-weighted centroid of all singles in the window * EnergyWinner: position of the single with the highest deposited energy in the window

• All other attribute values of the resulting combined single are determined by the value of attribute_policy:

  • First (default): attribute values are taken from the first single in the window.

  • EnergyWinner: attribute values are taken from the single with the highest deposited energy in the window.

  • Last: attribute values are taken from the last single in the window.

To obtain the same pile-up behavior as in GATE 9, set the following options:

time_window_policy = "EnergyWinnerParalyzable"
position_attribute_policy = "EnergyWinner"
attribute_policy = "EnergyWinner"

The DigitizerPileupActor can currently only be used in single-threaded simulations.

pu = sim.add_actor("DigitizerPileupActor", "Singles_with_pileup")
pu.input_digi_collection = "Singles"
pu.group_volume = crystal.name
pu.authorize_repeated_volumes = True
pu.time_window = 100.0 * ns
pu.output_filename = "singles.root"

Refer to test097 for an example.

Reference

class DigitizerPileupActor(*args, **kwargs)

Dititizer module for simulating pile-up (combining singles that occur close to each other in time, in the same volume).

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attribute_policy:

  • Default value: First

  • Allowed values: (‘First’, ‘EnergyWinner’, ‘Last’)

  • Description: Policy used to determine the value of all attributes of the piled-up digi other than TotalEnergyDeposit and PostPosition. First: the attribute value of the first digi is used. EnergyWinner: the attribute value of the digi with the highest energy is used. Last: the attribute value of the last digi is used.

• authorize_repeated_volumes:

  • Default value: False

  • Description: User must say explicitly that the digitizer can work with repeated volumes

• clear_every:

  • Default value: 100000.0

  • Description: The memory consumed by the actor is minimized after having processed the specified amount of digis

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• group_volume:

  • Default value: None

  • Description: Name of the volume in which digis are piled up.

• input_digi_collection:

  • Default value: Singles

  • Description: Digi collection to be used as input.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• position_attribute_policy:

  • Default value: EnergyWeightedCentroid

  • Allowed values: (‘EnergyWinner’, ‘EnergyWeightedCentroid’)

  • Description: Policy used to determine the PostPosition attribute of the piled-up digi. EnergyWinner: the position of the digi with the highest energy is used. EnergyWeightedCentroid: the position is the energy-weighted centroid of all piled-up digis.

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• skip_attributes:

  • Default value: []

  • Description: Attributes to be omitted from the output.

• sorting_time:

  • Default value: 1000.0

  • Description: Time interval during which digis are buffered for time-sorting

• time_window:

  • Default value: 0

  • Description: Time window during which consecutive digis are merged into a single digi

• time_window_policy:

  • Default value: NonParalyzable

  • Allowed values: (‘NonParalyzable’, ‘Paralyzable’, ‘EnergyWinnerParalyzable’)

  • Description: Policy controlling how the pileup window is updated when new digis occur. NonParalyzable: the time window is fixed and does not change when new digis occur. Paralyzable: the time window is extended each time a new digi occurs within the current time window. EnergyWinnerParalyzable: the time window is extended when a new digi occurs within the current time window, if this digi has a higher energy than the previous digis in the current window.

Coincidences Sorter

Note

The current version of the Coincidence sorter is still a work in progress. It is only available for offline use.

The Coincidence Sorter finds pairs of coincident singles within a defined time window and groups them into coincidence events. Various policies are available for handling multiple coincidences.

root_file = uproot.open("singles.root")
singles_tree = root_file["Singles_crystal"]
ns = gate.g4_units.nanosecond
time_window = 3 * ns
policy = "takeAllGoods"
mm = gate.g4_units.mm
transaxial_plane = "xy"
min_transaxial_distance = 0 * mm
max_axial_distance = 32 * mm

# Apply coincidence sorter
coincidences = coincidences_sorter(
   singles_tree,
   time_window,
   policy,
   min_transaxial_distance,
   transaxial_plane,
   max_axial_distance,
   chunk_size=100000,
   return_type="dict",
   output_file_path=None,
   output_file_format="root",
)

Coincidences with oblique lines of response can be excluded by limiting the axial distance between their two singles (max_axial_distance). Likewise, coincidences between adjacent detectors can be excluded by imposing a minimum transaxial distance (min_transaxial_distance). The transaxial_plane can be “xy”, “yz”, or “xz”, depending on the PET scanner geometry. Coincidences that comply with the given max_distance_axial and max_distance_axial are referred to as “good pairs” in the definitions below.

The following policies are supported to deal with multiple coincidences in the same time window:

• removeMultiples: No multiple coincidences are accepted, even if there are good pairs.

• takeAllGoods: Each good pair is considered.

• takeWinnerOfGoods: From all good pairs, only the one with the highest energy is considered.

• takeIfOnlyOneGood: If exactly one good pair exists, keep it, otherwise discard all pairs.

• takeWinnerIfIsGood: If the highest energy pair is good, take it, otherwise discard all pairs.

• takeWinnerIfAllAreGoods: If all pairs are good, then take the one with the highest energy, otherwise discard all pairs.

By default, coincidences are returned from the function in a Python dictionary (return_type=”dict”). Alternatively, they can be returned as a pandas DataFrame (return_type=”pd”). It is also possible to specify an output file for saving the coincidences (output_file_path) in ROOT format, (output_file_format=”root”, the default) or HDF5 format (output_file_format=”hdf5”). In the case of file output, the function returns None. Saving coincidences to a file is recommended when processing large numbers of singles, to avoid running out of memory.

The coincidence sorter reads singles from the singles_tree in groups containing chunk_size singles. Larger chunk sizes result in more efficient disk I/O but can also result in higher memory consumption. The coincidence sorter may internally use a larger chunk size than indicated by the chunk_size parameter, when required to correctly handle non-monotonicities of time in the singles tree. These non-monotonicities typically arise in multi-threaded simulations, because time progresses independently in each thread. It is important to note that the resulting coincidences are independent of the value of chunk_size, because the coincidence sorter also considers coincidences between singles in consecutive chunks.

Refer to test072 for more details.

CCMod offline tools

A few functionalities from the Compton camera module (CCMod) have been added. These tools are currently available only for offline use.

Ideal singles

The ccmod_ideal_singles function uses as input a PhaseSpace file that stores all steps n the slected volume (Compton camera volume), including those with zero energy deposition. The following attributes are needed : “EventID”, “PostPosition_X”, “PostPosition_Y”, “PostPosition_Z”, “ProcessDefinedStep”, “PreKineticEnergy”, “PostKineticEnergy”, “PDGCode”, “ParentID”. It filters hits with “PDGCode” = 22 and “ParentID” equals to 0 and “ProcessDefinedStep” different from “Transportation” and “Rayl”. Therefore, for a gamma source, it stores only the photonic interactions (except Rayleigh) of the primary photons. In order to use this function for ion sources the “ParentID” corresponding to the primary photons should be selected. This function also creates a new attribute “IdealTotalEnergyDeposit” using the “PreKineticEnergy” and “PostKineticEnergy” of the photons at each interaction. Therefore, we can recover Compton and Photoelectric interactions with the correct position and the ideal energy deposition obtained from the energy lost by the photon in the interaction. Position information and “EventID” are needed for the following steps when coincidences or cones are created.

root_file = uproot.open(root_filename)
phSp_tree = root_file["PhaseSpace"]
data = phSp_tree.arrays(library="pd")
data_singles = ccmod_ideal_singles(data)

See test096 step1 for an example simulation that generates the PhaseSpace file.

Ideal coincidences

The ccmod_ideal_coincidences sorts entries (hits or singles) by eventID and groups them into coincidence events by adding a coincidence identification attribute “CoincID”. This function can be used with hits or singles (ideal or not). It adds the “CoincID” attribute to the data when more than two entries have the same eventID, and removes entries where the eventID value appears only once. The input and output are a pandas data frame.

data_coinc = ccmod_ideal_coincidences(data_singles)

Create cones

The ccmod_make_cones takes the pandas data frame for coincidences (i.e. with “CoincID” attribute). Attributes for position and energy must be present. The name of these attributes can be specified in the function. By default “TotalEnergyDeposit”, “PostPosition_X”, “PostPosition_Y” and “PostPosition_Z” are employed. This function creates a new data frame with the information needed to create Compton cones. The new attributes for each “CoincID” value (each entry) are “Energy1” (energy of the first interaction of the coincidence), “EnergyRest” (the energy corresponding to the rest of the interactions in the coincidence), and the position of the first (“X1”, “Y1”, “Z1”) and second interaction (“X2”, “Y2”, “Z2”).

In the following example cones are created using the “IdealTotalEnergyDeposit” attribute instead of “TotalEnergyDeposit”.

data_cones = ccmod_make_cones(data_coinc,energy_key_name = "IdealTotalEnergyDeposit", posX_key_name = "PostPosition_X", posY_key_name = "PostPosition_Y",posZ_key_name = "PostPosition_Z")

Refer to test096 step2 for more details.

ARFActor and ARFTrainingDatasetActor

Description

The Angular Response Function (ARF) is a method designed to accelerate SPECT simulations by replacing full particle tracking within the SPECT head (collimator and crystal) with an analytical function. This function provides the detection probability of a photon across all energy windows based on its direction and energy. Specifically, ARF estimates the probability that an incident photon will interact with or pass through the collimator and reach the detector plane at a specified energy window. By approximating the SPECT head’s behavior in this manner, ARF allows for faster planar and SPECT simulations. Using ARF involves three steps:

1. Create a training dataset.

2. Build the ARF function.

3. Apply the trained ARF to enhance simulation efficiency.

Warning

Ensure that torch and garf (Gate ARF) packages are installed prior to use. Install them with: pip install torch gaga_phsp garf

Step 1: Creating the Training Dataset

The initial step involves creating a dataset for training. This can be implemented by following the example in test043_garf_training_dataset.py . Configure a simplified simulation to emit photons across the expected energy range (e.g., slightly above 140.5 keV for Tc99m) through the SPECT head, recording detected counts. The ARFTrainingDatasetActor is utilized here, with input from a detector plane positioned directly in front of the collimator. This actor stores detected counts per energy window in a ROOT file. For efficiency, a Russian roulette technique reduces the data size for photons with low detection probabilities due to large incident angles. Users must specify energy windows by referencing the name of the DigitizerEnergyWindowsActor associated with the SPECT system.

# arf actor for building the training dataset
arf = sim.add_actor("ARFTrainingDatasetActor", "my_arf_actor")
arf.attached_to = detector_plane.name
arf.output_filename = "arf_training_dataset.root"
arf.energy_windows_actor = ene_win_actor.name
arf.russian_roulette = 50

Step 2: Training the ARF Model

After generating the dataset, train the ARF model using garf_train, which trains a neural network to represent the ARF function. This requires the previous dataset as input, with training options specified in a JSON configuration file (e.g., train_arf_v058.json in tests/data/test043). A suitable GPU is recommended for training. The output is a .pth file containing the trained model and its associated weights.

garf_train  train_arf_v058.json arf_training_dataset.root arf.pth

Step 3: Using the Trained ARF Model in Simulation

With the trained model (.pth file), you can now substitute direct photon tracking in the SPECT head with the ARF model. This is accomplished with the ARFActor, which takes the trained .pth file, consider a detector plane, and generates a 2D projection image with estimated detection counts. Note that the values represent probabilities rather than integer counts, as this is a variance reduction method. Although the computation time per particle is comparable to full tracking, ARF accelerates convergence towards the mean counts across all pixels. Consequently, an ARF-based simulation can achieve the same noise level as a traditional simulation but with up to 5-10 times fewer particles. The distance_to_crystal parameter defines the spacing between the detector plane and the crystal center, allowing for positional correction in the 2D projection.

arf = sim.add_actor("ARFActor", "arf")
arf.attached_to = detector_plane
arf.output_filename = "projection.mhd"
arf.image_size = [128, 128]
arf.image_spacing = [4.41806 * mm, 4.41806 * mm]
arf.verbose_batch = True
arf.distance_to_crystal = 74.625 * mm
arf.pth_filename = "arf.pth"
arf.batch_size = 2e5
arf.gpu_mode = "auto"

Reference

The source code for garf is here : OpenGATE/garf The associated publication is:

Learning SPECT detector angular response function with neural network for accelerating Monte-Carlo simulations. Sarrut D, Krah N, Badel JN, Létang JM. Phys Med Biol. 2018 Oct 17;63(20):205013. doi: 10.1088/1361-6560/aae331. https://www.ncbi.nlm.nih.gov/pubmed/30238925

class ARFTrainingDatasetActor(*args, **kwargs)

The ARFTrainingDatasetActor build a root file with energy, angles, positions and energy windows of a spect detector. To be used by garf_train to train a ARF neural network.

Note: Must inherit from ActorBase not from HitsCollectionActor, even if the cpp part inherit from HitsCollectionActor

This actor has the following output:

• root_output

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• attributes:

  • Default value: []

  • Description: FIXME

• clear_every:

  • Default value: 100000.0

  • Description: FIXME

• debug:

  • Default value: False

  • Description: FIXME

• energy_windows_actor:

  • Default value: None

  • Description:

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• keep_zero_edep:

  • Default value: False

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• plane_axis:

  • Default value: [0, 1, 2]

  • Description: Axe indices for the plane

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• russian_roulette:

  • Default value: 1

  • Description: Russian roulette factor.

class ARFActor(*args, **kwargs)

The ARF Actor is attached to a volume. Every time a particle reaches the volume, it considers the energy and the direction of the particle. It runs the neural network model to provide the probability of detection in all energy windows.

Output is an ITK image that can be retrieved with self.output_image

This actor has the following output:

• counts

• squared_counts

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• batch_size:

  • Default value: 200000.0

  • Description: FIXME

• distance_to_crystal:

  • Default value: 75.0

  • Description: FIXME

• enable_hit_slice:

  • Default value: False

  • Description: FIXME

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• flip_plane:

  • Default value: False

  • Description: FIXME

• gpu_mode:

  • Default value: auto

  • Allowed values: (‘cpu’, ‘gpu’, ‘auto’)

  • Description: FIXME

• image_size:

  • Default value: [128, 128]

  • Description: FIXME

• image_spacing:

  • Default value: [4.41806, 4.41806]

  • Description: FIXME

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• plane_axis:

  • Default value: [0, 1, 2]

  • Description: Axe indices for the plane

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• pth_filename:

  • Default value: None

  • Description: FIXME

• verbose_batch:

  • Default value: False

  • Description: FIXME

LETActor

Note

Documentation TODO. Refer to test050 <OpenGATE/opengate>`_ for current examples.

BremsstrahlungSplittingActor

Description

This actor replicates the behaviour of the bremsstrahlung splitting which can be used using GEANT4 command line. When an electron or a positron occurs a bremsstrahlung process, the interaction is split in splitting_factor particles, with a weight of 1/splitting_factor.

nb_split = 100
brem_splitting_actor = sim.add_actor("BremSplittingActor", "eBremSplittingW")
brem_splitting_actor.attached_to = W_tubs.name
brem_splitting_actor.splitting_factor = nb_split
brem_splitting_actor.particles = "e-", "e+"

To be noted that the GEANT4 command line is a more straightforward way to obtain the same result.

Reference

class BremsstrahlungSplittingActor(*args, **kwargs)

This splitting actor enables process-based splitting specifically for the Bremsstrahlung process. Each time a Brem process occurs, its behavior is modified by generating multiple secondary Brem scattering tracks (splitting factor) attached to the initial charged particle.

This actor is not really needed as Geant4 already proposes this with: /process/em/setSecBiasing eBrem my_region 100 50 MeV But we use it as a test/example.

This actor has the following output:

User input parameters and default values:

• attached_to:

  • Default value: world

  • Description: Name of the volume to which the actor is attached.

• bias_only_once:

  • Default value: True

  • Description: If true, the biasing mechanism is applied only once per particle history

• bias_primary_only:

  • Default value: True

  • Description: If true, the biasing mechanism is applied only to particles with a ParentID of 1

• energy_cutoff:

  • Default value: 0

  • Description: if the particle energy become lower than this value, the particle is killed.

• exclude_volumes:

  • Default value: []

  • Description: A list of volumes where this actor’s biasing is disabled, allowing particles to be tracked with normal, unbiased physics.

• filter:

  • Default value: None

  • Description: Filter used by this actor: the acti is only triggered if the filter accepts the step

• filters:

  • Deprecated: Use ‘.filter’ not ‘.filters’.

• filters_boolean_operator:

  • Deprecated: Use filters composition instead.

• mother:

  • Deprecated: The user input parameter ‘mother’ is deprecated. Use ‘attached_to’ instead.

• name (must be provided):

  • Default value: None

• particles:

  • Default value: [‘all’]

  • Description: Specifies the particles to split. The default value, all, includes all particles

• priority:

  • Default value: 100

  • Description: Indicates where the actions of this actor should be placed in the list of all actions in the simulation. Low values mean ‘early in the list’, large values mean ‘late in the list’.

• processes:

  • Default value: [‘eBrem’]

  • Description: Specifies the process split by this actor. This parameter is set to eBrem, as the actor is specifically developed for this process. It is recommended not to modify this setting.

• splitting_factor:

  • Default value: 1

  • Description: Specifies the number of particles to generate each time the splitting mechanism is applied

• weight_cutoff:

  • Default value: -1

  • Description: if the particle weight become lower than this value, the particle is killed.

Free Flight Actors

Description

Free Flight is a variance reduction technique designed to accelerate simulations, particularly in SPECT imaging, by replacing stochastic particle transport with analytical probability calculations[cite: 248]. Instead of tracking a photon step-by-step through a collimator or SPECT head, these actors analytically “project” the probability of a photon reaching a target volume (like a detector plane) without interaction. See paper [Sarrut et al, PMB, 2026, to appear].

OpenGATE provides two main actors for this purpose:

• GammaFreeFlightActor: Primarily used for “primary” photons (unscattered) or those originating directly from the source.

• ScatterSplittingFreeFlightActor: Used to handle photons that undergo Compton or Rayleigh scattering within a volume, such as a patient phantom.

GammaFreeFlightActor

This actor is typically attached to the world or a specific phantom volume. It ensures that photons directed towards the detector are accounted for analytically[cite: 249]. It is often used in conjunction with Forced Direction or Angular Acceptance source settings to focus the simulation on the detector’s field of view.

# Add the actor to the simulation
ff = sim.add_actor("GammaFreeFlightActor", "ff")
ff.attached_to = "world"

# Optionally exclude specific volumes like the detector crystal
# to let standard Geant4 tracking take over once the particle reaches the detector.
ff.exclude_volumes = ["spect_1_crystal"]

ScatterSplittingFreeFlightActor

The ScatterSplittingFreeFlightActor handles the calculation of scattered radiation contributions. When a photon interacts, this actor “splits” the interaction into multiple analytical paths directed toward the detector, weighted by the physics of the interaction (e.g., Klein-Nishina cross-section).

• compton_splitting_factor / rayleigh_splitting_factor: Defines how many analytical photons are generated per interaction.

• kill_interacting_in_volumes: Volumes where the original interacting particle should be stopped to avoid double counting.

• angular_acceptance: Filters the analytical scattered photons to only those heading toward the detector.

ff_sc = sim.add_actor("ScatterSplittingFreeFlightActor", "ff_scatter")
ff_sc.attached_to = "world"
ff_sc.exclude_volumes = ["spect_1_crystal"]
ff_sc.kill_interacting_in_volumes = ["spect_1_crystal"]

# Splitting configuration
ff_sc.compton_splitting_factor = 50
ff_sc.rayleigh_splitting_factor = 50

# Direct scattered photons only towards the SPECT head
ff_sc.angular_acceptance.policy = "Rejection"
ff_sc.angular_acceptance.target_volumes = ["spect_1"]
ff_sc.angular_acceptance.angle_tolerance_max = 10 * gate.g4_units.deg

Merging and Uncertainty Calculation

Because Free Flight separates simulations into primary and scatter components, results must be merged offline. To obtain a statistically sound result, one must sum the mean counts per event from each step and propagate the variance.

The helper function merge_freeflight_uncertainty automates this by processing the counts.mhd and squared_counts.mhd files from each subfolder (e.g., primary, scatter).

Statistical Equations:

• Let $C_i$ be the raw counts and $C2_i$ the squared counts for step $i$ with $N_i$ events.

• Mean per event: $E[X_i] = C_i / N_i$.

• Variance of the mean: $Var(E[X_i]) = (E[X_i^2] - (E[X_i])^2) / (N_i - 1)$.

• Total Mean: $E[X_{total}] = sum E[X_i]$.

• Final Relative Uncertainty: $R = frac{sqrt{sum Var(E[X_i])}}{E[X_{total}]}$.

Usage of Helpers:

from opengate.contrib.spect.spect_freeflight_helpers import merge_freeflight_uncertainty
from pathlib import Path

# Define parameters
folder = Path("./output_simu")
ref_n = 1e8  # Target reference number of events
subfolders = ["primary", "scatter"]
num_events = [1e6, 2e5]  # Number of simulated events in each subfolder

# Merge images and calculate uncertainty for head 0
merge_freeflight_uncertainty(
    folder,
    ref_n,
    subfolders,
    num_events,
    counts_filename="projection_0_counts.mhd",
    squared_counts_filename="projection_0_squared_counts.mhd",
    output_filename="relative_uncertainty_0.mhd"
)

Reference

merge_freeflight_uncertainty(folder, ref_n, subfolders, num_events, counts_filename='projection_0_counts.mhd', squared_counts_filename='projection_0_squared_counts.mhd', output_filename='relative_uncertainty_0_counts.mhd', verbose=False)
